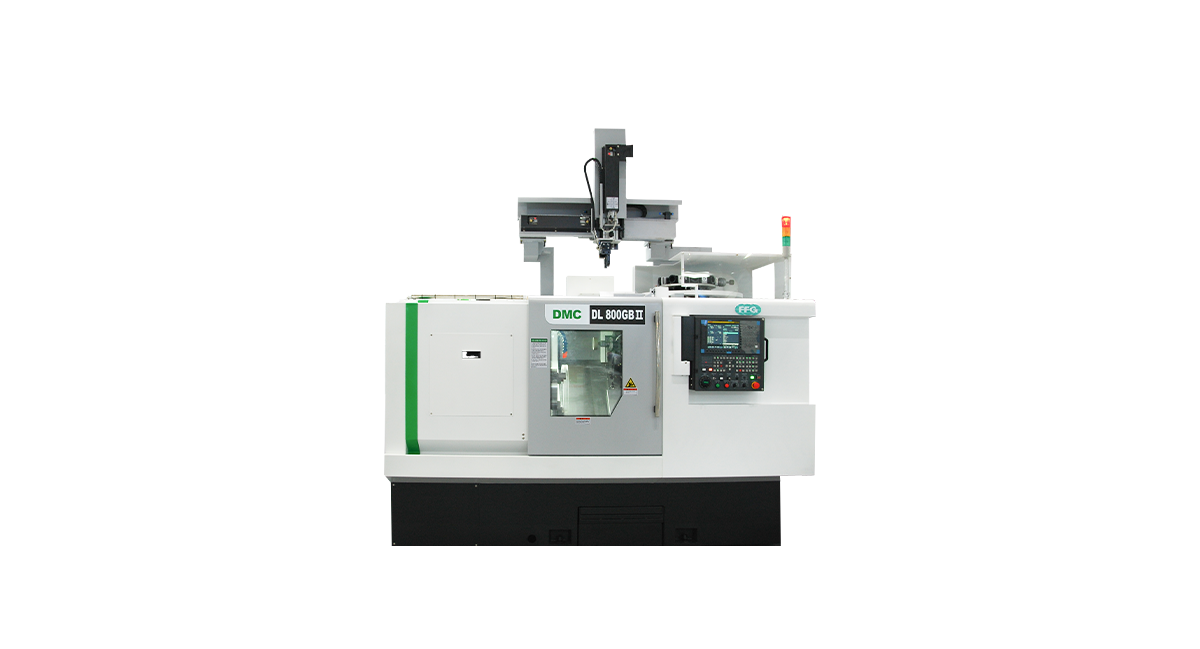

DL 600GBⅡ / 800GBⅡ

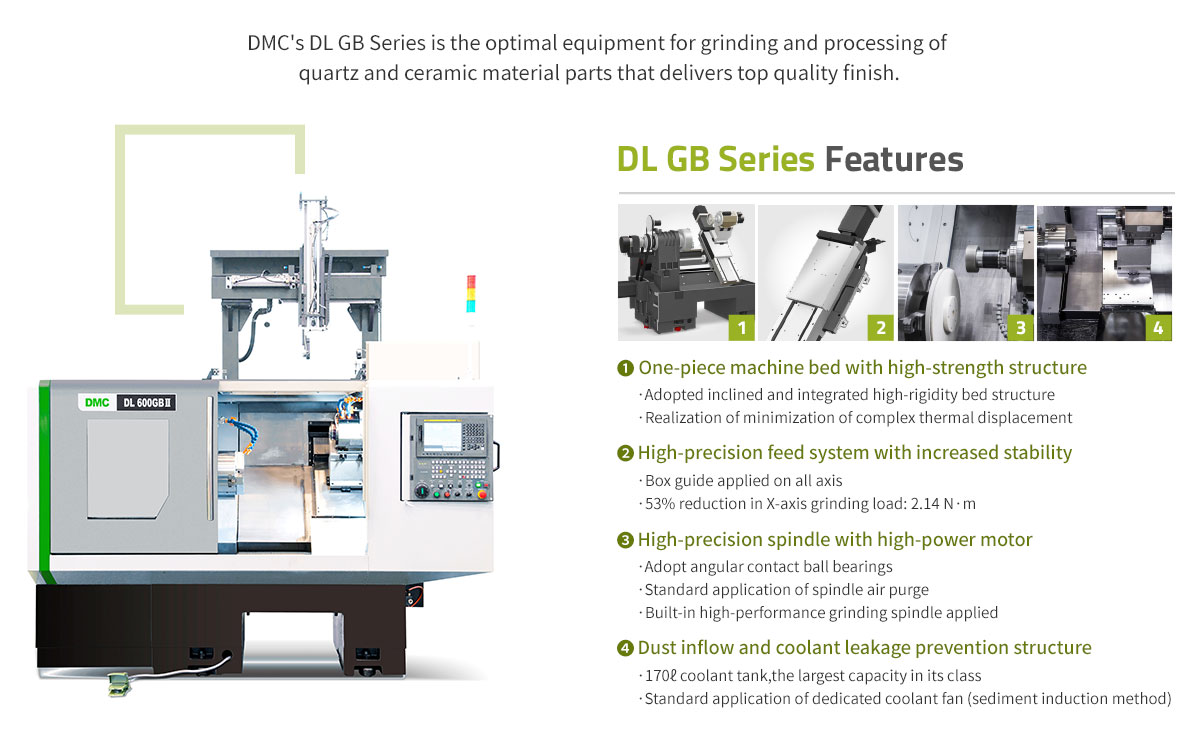

DL GB Series Application
· Perform grinding on outer diameter, inner diameter, end faces

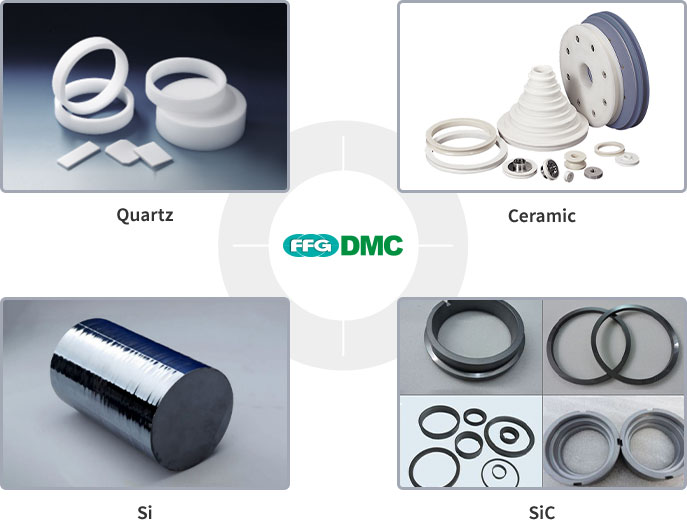

· Applicable materials
- Single-crystal Silicon, Quartz (SiO2), Silicon Carbide (SiC), Ceramics and more materials in development for Semi-conductor
DL GB Specification
[OPT]
| Description | Unit | DL600GBⅡ | DL800GBⅡ | |
|---|---|---|---|---|
| Capacity | Slide Type(X/ Z) | - | Box | Box |
| Bed Slant | deg | 45˚ | 45˚ | |
| Max.Swing Dia. | mm(inch) | Φ600(23.62) | Φ900(35.43) | |
| Max,Grinding Dia. | mm(inch) | Φ600 (23.62) | Φ800 (31.50) | |
| Bar Capa. | mm(inch) | Φ38 (1.50) | Φ38 (1.50) | |
| Travel | Travel (X/Z) mm(inch) | 380 / 450 (14.96 / 17.72) | 500 / 550 (19.69 / 21.65) | |
| Rapid traverse rate (X/Z) | m/min | 20 / 24 (787.40 / 944.88) | 20 / 24 (787.40 / 944.88) | |
| Spindle | Chuck size | inch | 12" | 12" |
| Spindle Speed | rpm | 500 [2,500] | 500 [2,500] | |
| Motor (30min/Cont.) | kW | 15/11 | 15/11 | |
| Spindle Nose | ASA | A2-8 | A2-8 | |
| Spindle Bearing Inner Dia. | mm(inch) | Φ120 (4.72) | Φ120 (4.72) | |
| Spindle Bore Dia. | mm(inch) | Φ86 (3.39) | Φ86 (3.39) | |
| ATC [OPT] | Tool shank | - | BT40 | BT40 [BT50] |
| Tool storage capacity | position | 6 | 8 [8] | |
| Max. tool weight | kg | 8 | 6 [9] | |
| Tool select type | - | Fixed | Fixed | |
| Grinding Unit | Motor Output kW | 3.7 [ 5.5 / 7.5 ] | 3.7 [ 5.5 / 7.5 ] | |
| Max. Speed | rpm | 6,000 [10,000] | 6,000 [10,000] | |
| General | Machine dimension (LxWxH) |
mm(inch) | 2,725 x 1,780 x 1,750 | 2,928 x 2,137 x 1,819 |
| [3,173 with ATC] | [3,322 with ATC] | |||
| (107.3 x 70 x 68.9) | (115.3 x 84.1 x 71.6) | |||
| ([124.9 with ATC]) | ([130.8 with ATC]) | |||
| Machineweight | kg | 3,300 | 4,500 | |
| CNC Controller | FANUC 0i-TF PLUS | FANUC 0i-TF PLUS | ||
